Full Eject Balers

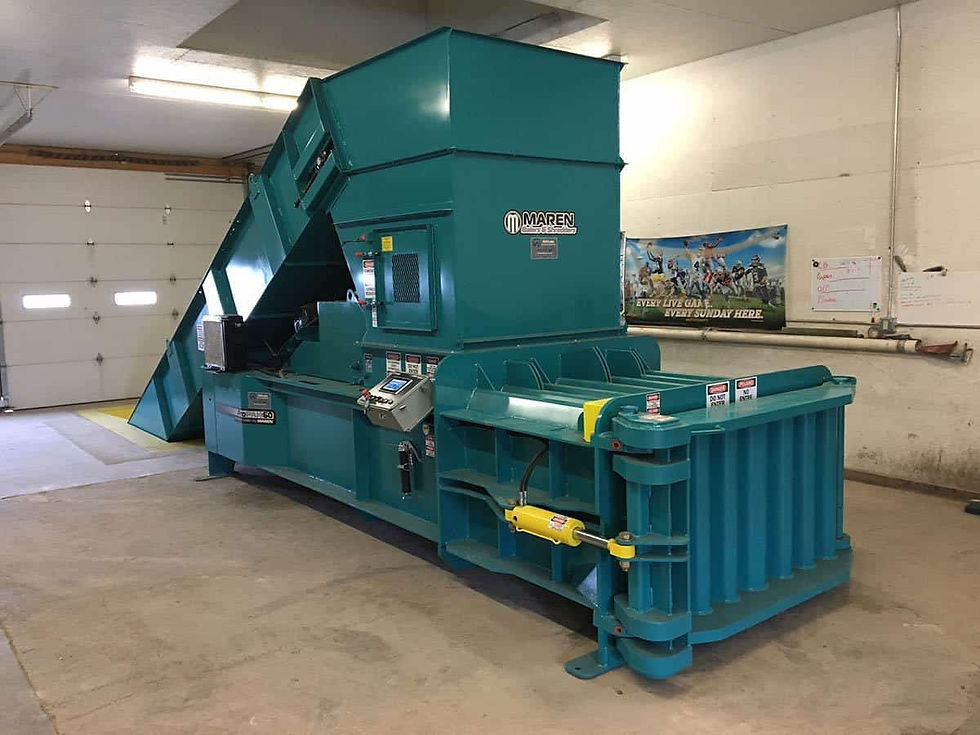

The Titan is the newest generation of our successful LD Series horizontal balers. Like the classic LD, the Titan is an efficient and affordable choice for baling multiple products and features a heavy-duty solid plate construction with advanced hydraulics and PLC controls.
Baler Models
System Features
Model Number | Overall Width | Overall Width | Overall Height | Hopper Dimensions (W" x L") | HP | Max System Pressure | Main Bore | Total Force | Cycle Time | Bale Size (W x H x L) | Bale Weight (OCC) | Bale Weight (ONP) | Bale Weight (PET) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Titan-60-XHD-10 | 97" | 241" | 100" | 58" x 45" | 50 HP | 3000 PSI | 10" | 235,620 lbs | 20 secs | 60" x 30" x 48" | Up to 1,600 Lbs | Up to 2,200 Lbs | Up to 1,000 Lbs |
Titan-6-CV | 86" | 210" | 96" | 58" x 35" | 30 HP | 3000 PSI | 8" | 150,800 lbs | 30 secs | 60" x 30" x 48" | Up to 1,200 Lbs | Up to 1,600 Lbs | Up to 900 Lbs |
System Features
Floor Liners
Floor Liner Plates (AR450) and adjustable wear shoes on bottom of press head. This allows for multi-material capabilities reduces the need for additional equipment.
Full Bale Ejection
With Full Eject, the chamber is cleared after each bale is made, switching between materials does not require shutting down, cleaning out or making unwanted contaminated bales from the previous material.
Progressive Edge Blade
The baler combines its Hardened Tool Steel Shear blade with its 46" Press head penetration to clear any potential material jams reducing unit downtime.
