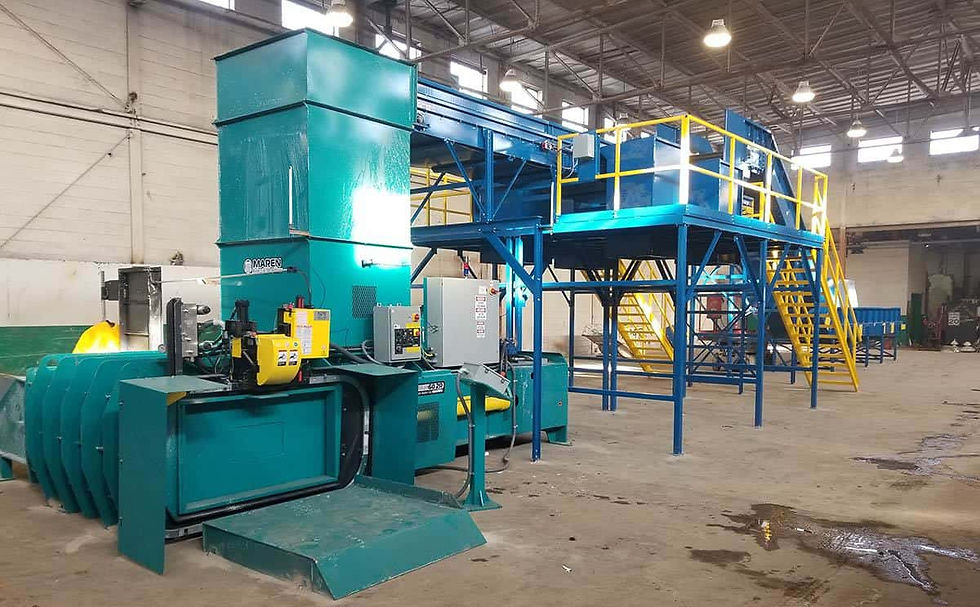

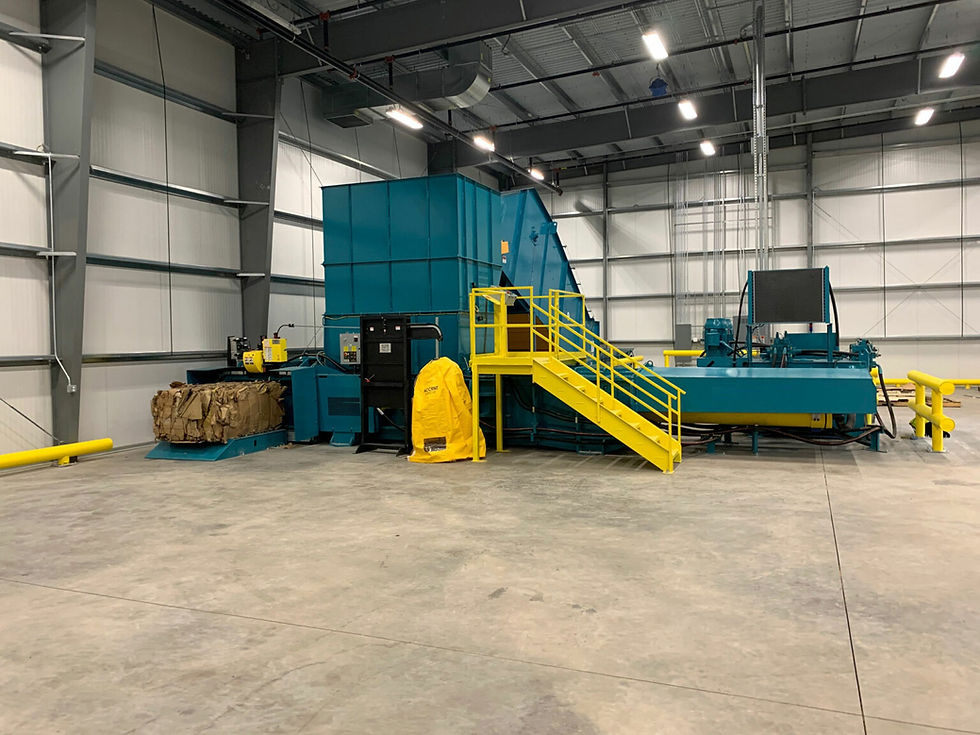

Two Ram Balers
IBC’s Two-Ram series is engineered, designed and manufactured using the latest technology in the baling industry. The Two-Ram Series’ key to performance lies in its innovative shear design along with its ease of operation. International Baler Corporation utilizes a heavy-duty box section frame design, combined with the standard Bale Door/Bale Release System to ensure maximum bale density and system efficiencies.
IBC offers an extremely diverse line of Two-Ram Balers. From mid-sized 8” Bore units geared toward smaller volume applications, to our big 13” Bore units that can handle much larger volumes and non-ferrous materials. IBC has a Two-Ram unit to fit your requirements.
Baler Models
System Features
Model Number | Hopper Dimensions (W" x L") | HP | System Pressure | Main Bore | Ram Face Pressure | Cycle Time | Bale Size (W x H x L) | Bale Weight (OCC) | Bale Weight (ONP) | Bale Weight (PET) |
|---|---|---|---|---|---|---|---|---|---|---|
TR-8-30 | 58" x 35" | 30 HP | 3000 PSI | 8" | 90 PSI | 30 secs | 60" x 30" x 48" | Up to 1,200 Lbs | Up to 1,400 Lbs | Up to 1,000 Lbs |
TR-9-30 | 58" x 40" | 50 HP | 3000 PSI | 9" | 112 PSI | 18 secs | 60" x 30" x 48" | Up to 1,300 Lbs | Up to 1,500 Lbs | Up to 1,100 Lbs |
TR-10-75 | 58" x 50" | 75 HP | 3000 PSI | 10" | 135PSI | 14.1 secs | 60" x 30" x 48" | Up to 1,400 Lbs | Up to 1,600 Lbs | Up to 1,200 Lbs |
TR-11-XXX | 90” x 57” | Varies | 3000 PSI | 11" | 240 PSI | Varies | 60" x 30" x 48" | Up to 1,500 Lbs | Up to 1,700 Lbs | Up to 1,300 Lbs |
TR-12-XXX | 90” x 57” | Varies | 3000 PSI | 12" | 240 PSI | Varies | 60" x 30" x 48" | Up to 1,600 Lbs | Up to 1,800 Lbs | Up to 1,400 Lbs |
TR-13-XXX | 90” x 57” | Varies | 3000 PSI | 12" | 240 PSI | Varies | 60" x 30" x 48" | Up to 1,700 Lbs | Up to 1,900 Lbs | Up to 1,500 Lbs |
TR-11-XXX-HP | 90” x 57” | Varies | 3500 PSI | 11" | 229 PSI | Varies | 60" x 30" x 48" | Up to 1,700 Lbs | Up to 1,900 Lbs | Up to 1,500 Lbs |
TR-12-XXX-HP | 90” x 57” | Varies | 3500 PSI | 12" | 274 PSI | Varies | 60" x 30" x 48" | Up to 1,800 Lbs | Up to 2,000 Lbs | Up to 1,600 Lbs |
TR-13-XXX-HP | 90” x 57” | Varies | 3500 PSI | 13" | 282 PSI | Varies | 60" x 30" x 48" | Up to 1,900 Lbs | Up to 2,100 Lbs | Up to 1,700 Lbs |
System Features
Removable End Wall
International's removable end wall allows for a quick solution to a material jam in a unit. This feature also allows for a quicker turn around on routine maintenance for the bale chamber.
Keyed Frame
The Keyed Frame provides superior frame strength and longivity.
Progressive Edge Blade
The baler combines its Hardened Tool Steel Shear blades with its class leading 86% chamber penetration to clear any potential material jams reducing unit downtime.
